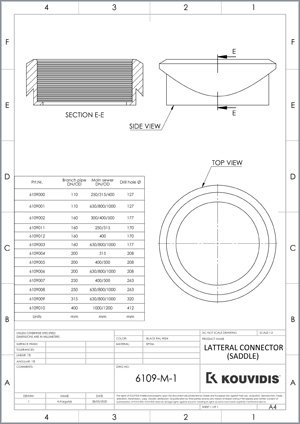

Lateral connector (saddle) For branching sewage and drainage pipes
The lateral connector is produced from EPDM synthetic rubber (ethylene, propylene, diene tetrapolymer) and has such geometry to withstand 0.5 bar. There are specific diameters of elastic fasteners connecting a central pipe with a branch pipe. Carefully check the link parameters selected by the study to create the correct hole diameter. In all cases the use of lubricant is considered necessary.
APPLICATION FIELD
They are intended to be used for the connection of plastic pipes (DN/OD) in non-pressure underground drainage and sewerage networks.
- COLOR:RAL 9004 Black
Nominal outer diameter (mm)
- PACKAGING
- DOWNLOADS
| Main sewer DN/OD | Branch pipe DN/OD | Drill hole (mm) | Part Number |
| 250/315/400 | 110 | 127 | 6109000 |
| 630/800/1000 | 110 | 127 | 6109001 |
| 300/400/500 | 160 | 177 | 6109002 |
| 250/315 | 160 | 170 | 6109011 |
| 400 | 160 | 170 | 6109012 |
| 630/800/1000 | 160 | 177 | 6109003 |
| 315 | 200 | 208 | 6109004 |
| 400/500 | 200 | 208 | 6109005 |
| 630/800/1000 | 200 | 208 | 6109006 |
| 400/500 | 250 | 263 | 6109007 |
| 630/800/1000 | 250 | 263 | 6109008 |
| 630/800/1000 | 315 | 320 | 6109009 |
| 1000/1200 | 400 | 412 | 6109010 |
